Silicone Rubber Heaters


Silicone Rubber Heaters:

Flexible Thermal Solutions

In industrial processing, standard rigid heaters often fall short when dealing with complex geometries, curved surfaces, or tight spaces. Silicone Rubber Heaters provide the ultimate solution, delivering uniform, efficient heat exactly where you need it.

Engineered for rugged durability and exceptional flexibility, these heaters can be custom-molded to fit the precise contours of your equipment, ensuring optimal thermal transfer and maximum energy efficiency.

Key Advantages

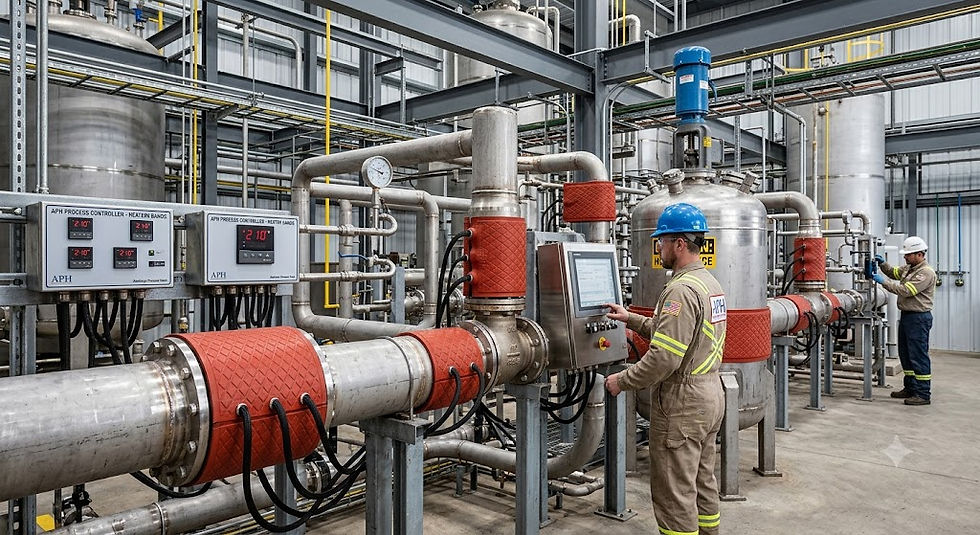

  • Superior Flexibility: Can be wrapped around pipes, draped over curved vessels, or adhered to complex mechanical parts.

  • Uniform Heat Distribution: Chemically-etched foil circuits or precision wire-wound elements ensure no hot or cold spots, protecting your materials and equipment.

  • Rapid Thermal Response: Their low profile and lightweight design minimize thermal mass, allowing for fast heat-up and cool-down cycles.

  • Moisture and Chemical Resistance: Made from rugged, vulcanized silicone rubber that is inherently resistant to moisture, humidity, weathering, and many industrial chemicals.

  • Versatile Mounting Options: Available with pressure-sensitive adhesive (PSA) backing, factory-vulcanized bonding, or mechanical fasteners (such as springs, hooks, or Velcro) for easy installation and removal.

8bf9dc90-5dbb-425e-9fe4-197a5e602f10_edi

Technical Specifications & Temperature Ratings

Silicone rubber heaters are designed to withstand challenging environments while maintaining precise temperature control.

​

  • Maximum Operating Temperature: Up to 450°F (232°C) for continuous operation.

  • Peak Intermittent Temperature: Up to 500°F (260°C) for short durations.

  • Minimum Temperature Limit: Down to -60°F (-51°C), making them excellent for freeze protection and cold-weather applications.

  • Watt Density: Standard configurations support up to 45 W/in² (7 W/cm²) depending on the application and mounting method.

  • Dielectric Strength: Exceptional electrical insulation, typically rated at 1000V plus twice the rated voltage.
